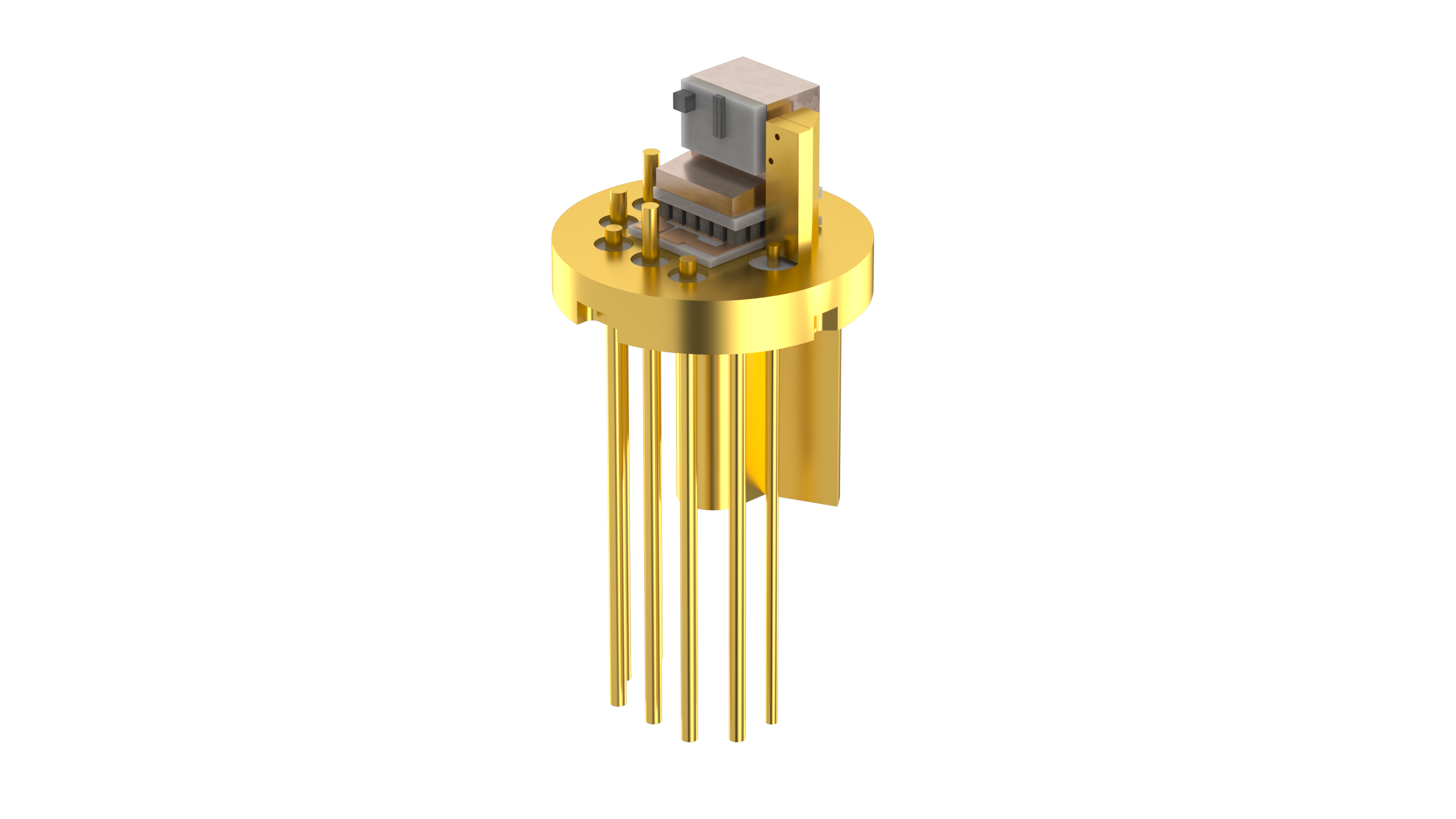

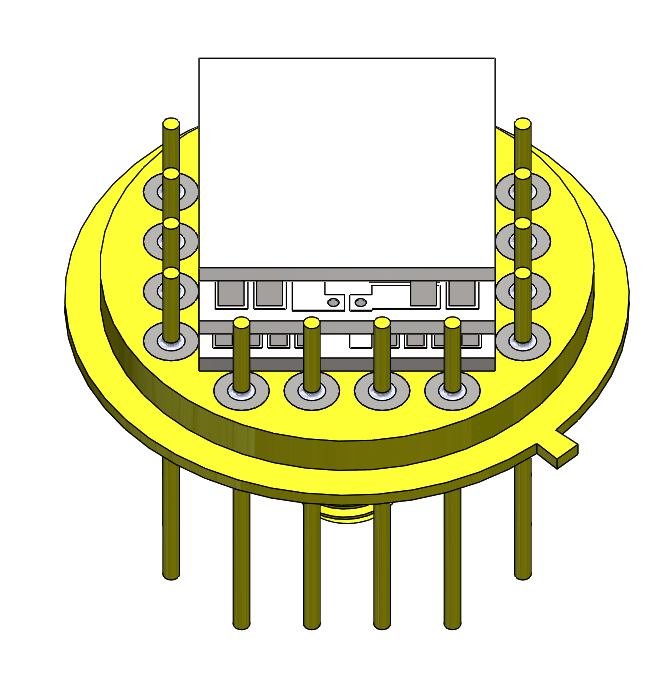

As optical communication speeds continue to increase, the requirements for device temperature control are also becoming more stringent. To address these challenges, a new solution has emerged: an integrated packaging solution that deeply integrates the thermoelectric cooler (TEC) with the TO package. This solution directly integrates the TEC within the TO coaxial package, significantly improving heat dissipation efficiency while effectively optimizing space layout. It overcomes the limitations of traditional packaging, enabling optical communication devices to develop towards higher speeds and smaller sizes.

Traditional optical module packaging uses a separate design, with the TEC and TO housing assembled as independent components. This "split" design has many problems:

1. The assembly process involves many steps and is complex.

2. There is a gap between the TEC and the casing, resulting in poor heat dissipation;

3. Its large size limits its application scenarios;

4. Risks such as difficulty in controlling the amount of solder and easy short circuits or breakage of wires limit further improvement of module performance.

Because lasers generate a lot of heat during operation, failure to dissipate heat in time can cause laser wavelength drift, severely affecting transmission performance. With the increasing speed of optical communication, traditional packaging methods can no longer meet the heat dissipation requirements. Therefore, we have adopted a new packaging solution: an integrated packaging design that deeply integrates the thermoelectric cooler (TEC) with the TO shell—fundamentally solving the heat dissipation problem of optical communication devices.

The integrated packaging design of TEC and TO casing brings comprehensive performance improvements and demonstrates significant technological advantages.

☑️ Significantly improved thermal management efficiency: The integrated design minimizes the distance between the TEC and the laser, greatly reducing thermal resistance. Compared to traditional discrete designs, heat dissipation efficiency is improved by approximately 30-40%, quickly transferring heat generated by the laser to the heat sink housing, ensuring the device operates within its optimal temperature range.

☑️Significantly enhanced reliability: The integrated structure greatly reduces potential sources of failure such as solder joints and leads, effectively avoiding risks such as short circuits and open circuits. At the same time, the overall mechanical strength is higher, which can better resist the stress impact caused by vibration and thermal cycling, extending the device life.

☑️Dual optimization of size and cost: The size is reduced by approximately 40% compared to traditional packaging, while the assembly process is simplified simultaneously. This not only improves production efficiency but also reduces manufacturing costs, providing customers with a cost-effective solution.

The integrated TEC and TO tube shell technology has a very broad application prospect and has been widely covered in many rapidly developing market sectors.

In 5G communication networks, integrated packaging design provides an ideal solution for optical modules. Its compact structure and excellent high-frequency performance meet the dual requirements of 5G base stations for miniaturization and high speed. Especially in 25G and 50G optical modules, integrated design has become the mainstream choice.

Data centers are another important application scenario: with the rapid popularization of 100G, 400G, and even 800G optical modules, systems are placing higher demands on the heat dissipation capabilities, reliability, and integration of the packaging. Integrated packaging solutions, with their excellent thermal management and stability, demonstrate significant advantages in high-speed, long-distance transmission.

Furthermore, with the rapid development of industries such as automotive electronics and industrial sensing, the market demand for miniaturized, highly reliable optoelectronic devices continues to rise. Integrated packaging designs can provide efficient and reliable optoelectronic solutions for a wider range of scenarios.

In summary, the integrated TEC and TO package technology is reshaping the packaging of optical modules, actively addressing the temperature control challenges faced by high-speed optical communications. As a leading global supplier of semiconductor cooling devices, FerroTec provides high-performance miniature semiconductor cooling chips for the optical communications industry, with customizable power, materials, and appearance . For product details and solutions, please contact us at 0571-89712612.
